In the plastics industry—where color consistency defines product appeal, brand identity, and market competitiveness—reliable color measurement is critical across the entire production chain. From raw plastic resins, masterbatches, and compounds to injection-molded parts, extruded products, and finished plastic goods, 3NH’s Plastics Color Measurement Solutions are engineered to meet the unique demands of plastic manufacturing. Designed to ensure batch uniformity, process stability, and adherence to global color standards, 3NH empowers plastic manufacturers, raw material suppliers, and R&D teams to deliver flawless color consistency.
Plastics have a complicated color management. As opposed to paper or textile, plastics are available in a variety of formulations: polyethylene, polypropylene, ABS, PVC, and so on. They respond differently to pigments and colourants. The difference implies that the process of matching and producing colors has to be carefully controlled.
Key challenges include:
1. Material Variability
Various base resins, e.g., polyethylene, polypropylene, recycled LDPE, HDPE, PP, ABS, or PET, react differently with identical pigment or masterbatch. The development of color is also influenced by additives such as UV stabilizers, flame retardants, and glass fillers.
As an example, a red pigment could be darker in HDPE than in transparent PET due to the difference between opacity and refractive index. The variability renders the prediction and the accuracy of the formulation of color extremely difficult unless the material is calibrated very accurately.
2. Process Inconsistencies
Due to slight variations in manufacturing, plastic components are able to turn a different color. Color is affected by melt temperature, shear rate, mold temperature, residence time and cooling rates.
Agglomerates of the pigment can be disrupted by increasing shear during extrusion and lightening the color. Disparate cooling may lead to color gradient, or warping of the part.
3. Lighting Conditions (Metamerism):
Most plastics are afflicted by color as seen by various light. The sample which appears proper under D65 daylight may appear incorrect under other lights, e.g. TL84, A. The appearance of a sample may be further darkened by gloss, haze or texture. The issue is particularly disturbing in multi-component assemblies in which each material must be perfect fit to others.
For your information: "A" refers to Illuminant A, a standard light source defined by the International Commission on Illumination (CIE).
4. Supplier Inconsistencies
Sometimes colorant suppliers will vary in their pigment purity, dispersion or batch to batch consistency. Just slightly altering the pigment load concentration or diluting the masterbatch may cause visible color differences. The high-regulation industries (automotive or consumer electronics) can reject even the slight color shifts (Delta E > 1.0). This risk is even increased by the absence of uniform specifications and quality audits.
The inspection of color in plastic does not just depend on what the human eye can see. The objective instruments are required because of some sections being transparent, textured, or glossy. Such tools provide numerical answers that remain faithful regardless of the party observing them.
Key tools and techniques include:
Precision Color Analysis for Diverse Materials: Spectrophotometers excel in delivering accurate color measurement across various substance types, leveraging spectral data to ensure consistency and quality. Spectral measurements are recorded and processed along the visible light range (400-700 nm). Based on high-precision spectral analysis technology, it can rapidly measure the reflection spectrum and colorimetric data of object surfaces.The device forms spectral curves and Lab* values, which are compared against establish

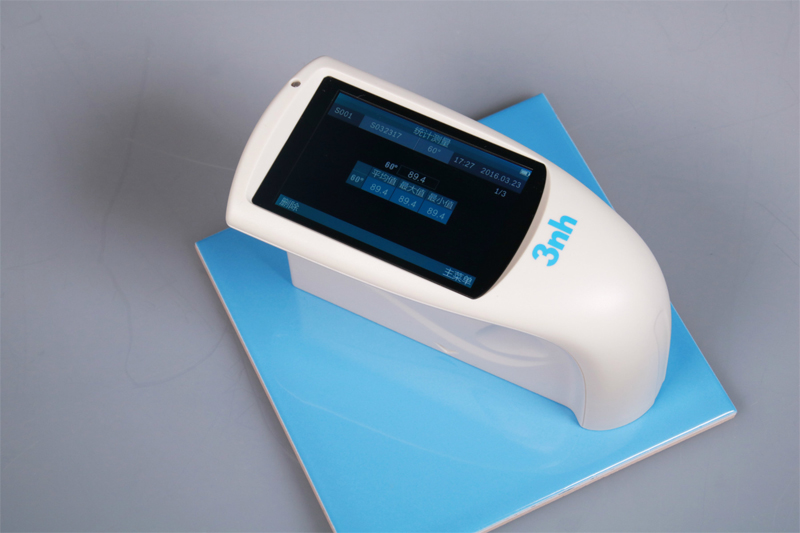

Gloss is tested over several angles, such as 20, 60, and 8,5 to demonstrate how light bounces off the surface. Gloss influences perceived color, particularly in high-shine or matte finishes. It is desirable to maintain color harmony within the product.

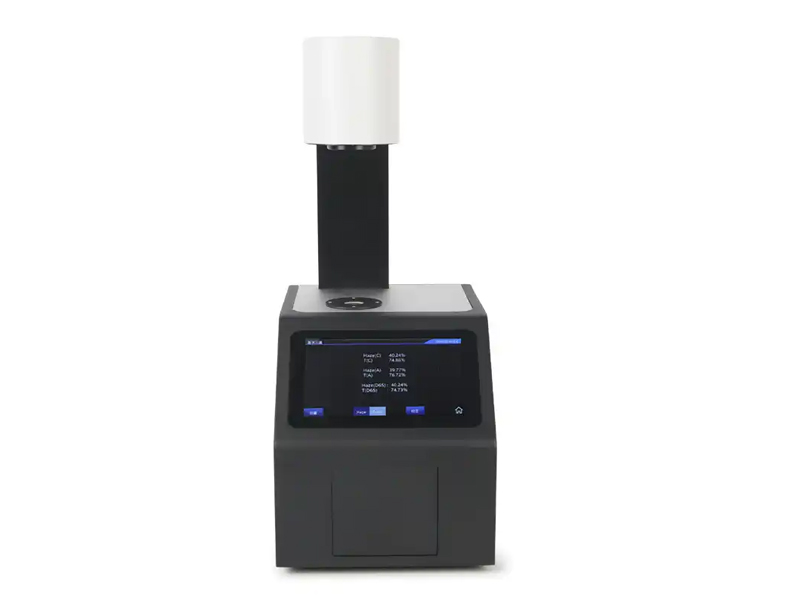

Plastic films or translucent parts are also measured in haze and transparency. These readings are important in packaging and automotive lenses, where clarity and diffusion of light is of essence.

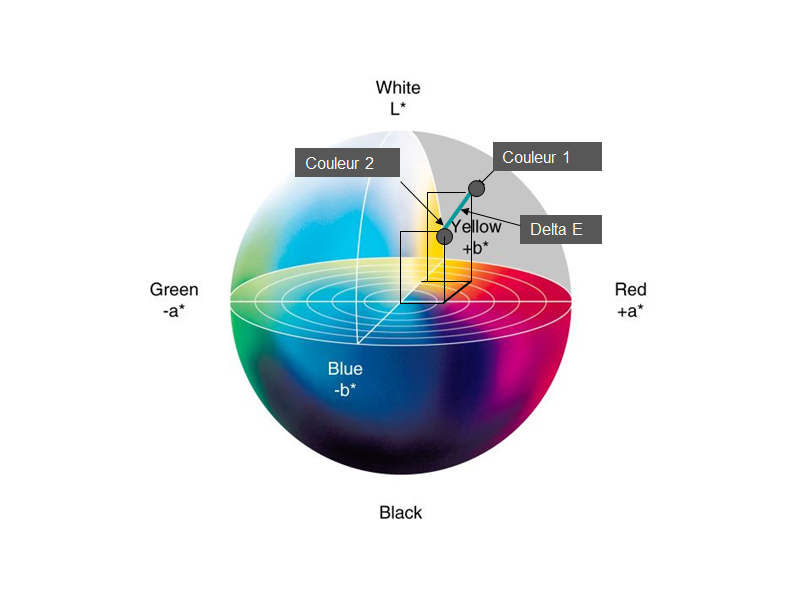

Visual color data is converted into standardized values that are mathematical models. ΔE is used to measure the difference between the color of a sample and the intended color. It allows manufacturers to establish tolerances of difference, often 1.0 or less Delta-E on critical visual parts.
Adapt to diverse plastic types—ABS, PP, PE, PVC, PC, nylon, and composite plastics—across all forms (pellets, powders, films, molded parts). Capture subtle color variations with delta-E values ≤0.02, supporting CIE Lab, CIE LCh, RAL, and Pantone color spaces for exact matching.
Withstand the rigors of plastic production workflows—from raw material inspection (resins, pigments, additives) to in-process testing (injection molding, extrusion, blow molding) and finished product quality control. Compensate for process-induced color shifts (e.g., temperature, pressure variations) to maintain consistency.
Eliminate color discrepancies between production batches, suppliers, and global manufacturing sites. 3NH tools enable standardized color communication, ensuring raw materials, semi-finished goods, and final products align with brand color standards.
Portable and handheld options support on-site line checks, while benchtop models suit laboratory R&D. Large measurement apertures (4mm/8mm/16mm) handle small components, large surfaces, and irregular shapes, with USB/BT connectivity for fast data export.
Plastics and colors are a complex issue thus most manufacturers employ color gurus. These alliances are not just about purchase of dyes they also involve science advice that enhances performance.
Why partner with color specialists?
● Customized Solutions: Depending upon whether you use Masterbatchers, extruders, or injection molders. The professionals will come up with solutions that best suit your resin type, process, and color requirements.
● Access to R&D: The giants in the industry such as 3NH would offer research-based information to assist in color solution.
● Training & Support: Staff training will help the operators, lab techs, and quality teams to realize the necessity of standardized color measurement practices.
● Advanced Tools & Software: Such solutions as 3NH SQCX software improve the process of digitizing and speeding up work.
The current manufacturers should involve color management in the environment. In the first place, sustainability and color do not seem related, yet there is a direct relationship. Firms that use the tools developed by 3NH have reported enhanced carbon efficiency and decreased manufacturing waste. Credit goes to color control and environmentally friendly manufacturing practices.
Here’s how effective color management contributes to sustainability:
1. Minimal Waste: Precise color matching at the beginning eliminates rework, wasted materials, and wasted energy.
2. Proper Use of Pigments: Proper formulation with optimal quantities of plastic colorant eliminates overuse. It also minimizes the impact on the environment of excess pigments.
3. Recycled Materials Incorporation: The advanced color systems can modify formulation to have color standards despite using recycled plastics.
4. Digital Prototyping: Brands can use digital renderings to approve colors, which means huge savings on materials used during design stages instead of relying on physical samples only.
Modern color management is based on innovative solutions. They support numerous industries, which include building goods and medical equipment besides consumer electronics. Be it color management plastic instruments or superior extrusion systems. These solutions maintain efficiency in production, consistency and preparedness to new challenges.
Types of solutions being developed include:
Brands are now able to store, manage, and share globally spectral data, master formulations, and approved color standards between facilities and suppliers. The libraries help to maintain color integrity over geographies. So, that miscommunication and manual error is reduced during production or reordering.
Spectrophotometers and colorimeters permanently installed on the line identify minor color changes in real time, in high-volume runs as well. Real-time correction minimizes wastage of materials and the chances of non-conformance batches.
These systems are capable of predicting the best formulations with artificial intelligence and historical pigment data better than conventional methods. They can adjust to changes in resin base, additive packages, and processing combinations, reduce the trial-and-error, and improve first-shot precision.
Those systems combine process control and inline color data. Should color run out of tolerance the system automatically corrects variables like dosing rates or temperature set points. This automatic correction is hands-free and ensures color consistency. Especially important in continuous processes such as film extrusion or blow molding.
Plastic plants have alternative workflows. Extruders encounter challenges that injection molders never face. Global manufacturers of consumer goods differ from specialized Masterbatchers. They are producing concentrated pigment for the plastic in medical devices.
When choosing the right solution, consider:
● Type of Product: Light and pigment react differently with flexible films, rigid packages, and car components.
● Production Scale: Portable handheld systems might be suitable for small-batch operations. The inline systems are required in high-throughput facilities.
● Automation Needs: Certain companies are fond of complete automatization of inline control. Whereas others adopt a hybrid model by involving digital and manual supervision.
● Colorant Type: Each of the liquid colorants, dry blends, and pre-mixed masterbatches requires specialized supporting tools.
With decades of expertise in color measurement for industrial materials, 3NH understands the unique challenges of plastics: diverse material properties, process variability, and strict brand color requirements. Our solutions balance technical rigor with user-friendliness—intuitive touchscreens, one-click calibration, and compatibility with plastic color management software streamline workflows. Backed by global technical support, software updates, and a 2-year warranty, 3NH is a reliable partner for plastics businesses of all sizes.
3NH’s Plastics Color Measurement Solutions help you reduce waste from color mismatches, accelerate time-to-market, and strengthen brand credibility. Whether you’re optimizing production processes, aligning with global suppliers, or innovating new plastic products, our tools deliver the precision and reliability you need to stay competitive.
Contact us for a personalized demo, custom solution quote, or to learn how 3NH can address your specific plastic color control needs.
