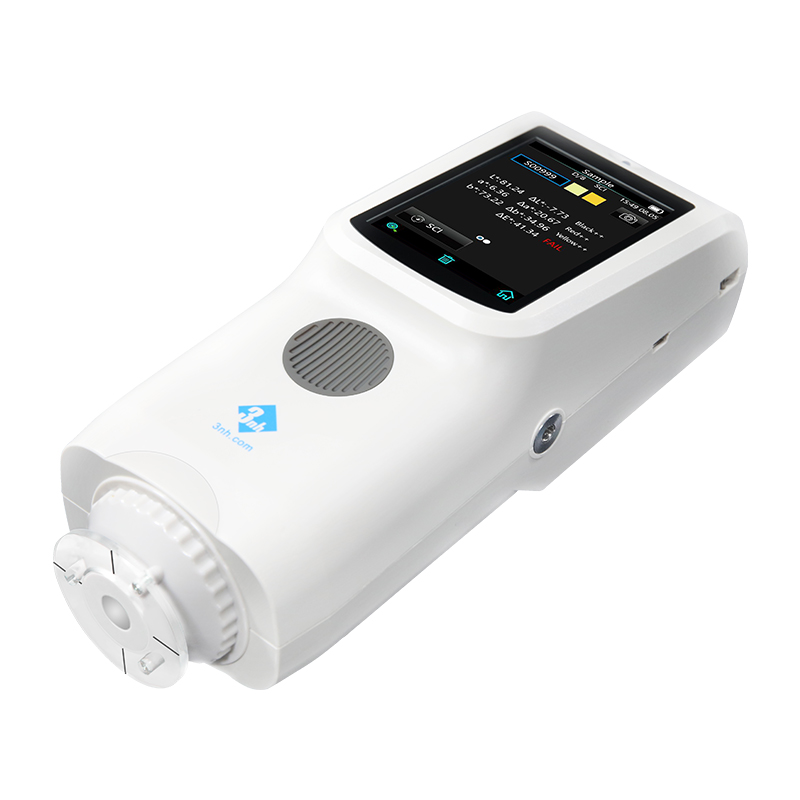

Spectrocolorreader CR9 (Advanced)
CR9 realizes the two-in-one spectrophotometer and spectrocolorreader, easy to use and not expensive. It is a masterpiece that integrates high precision, high performance, and high cost performance.

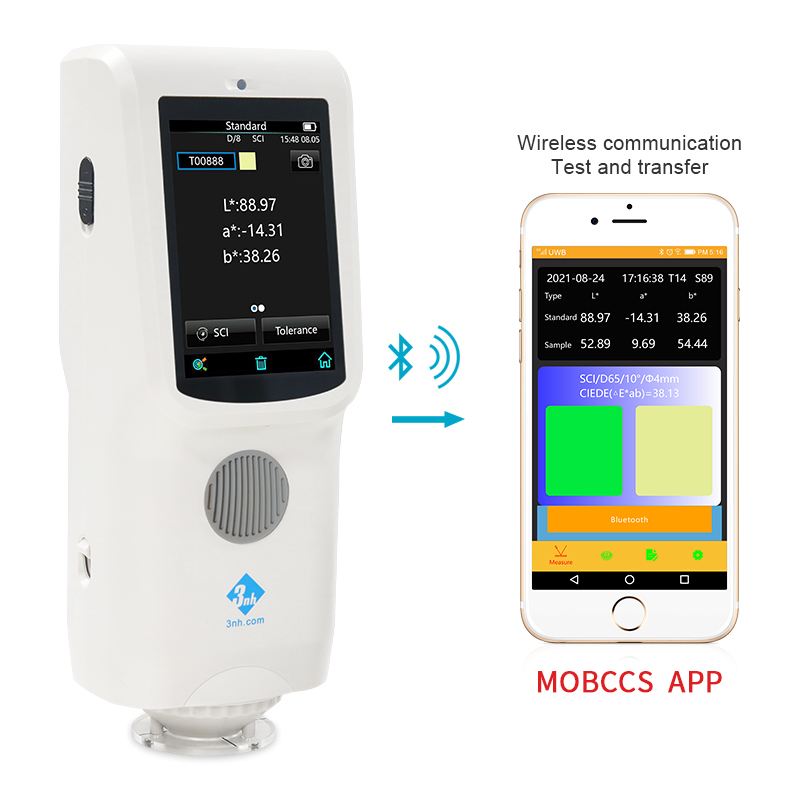

The CR9 (Advanced) is a portable spectrophotometer developed by 3nh using its own core technology of spectroscopy. It uses a built-in silicon photodiode array (dual-row 24 groups) sensor, an imported white board, and the repeatability ΔE*ab can be easily controlled within 0.03. CR9's powerful performance configuration and excellent inter-instrument error make color measurement more professional, while also ensuring the consistency of measurement data of multiple devices. The CR9 spectrocolorreader takes into account the measurement speed and the convenience of operation at the same time. The color can be controlled through the PC-side software, and it can also be seamlessly connected to the mobile device through Bluetooth.It greatly expands the application space of the colorimeter, and makes the traditional colorimeter glow with a different application charm.

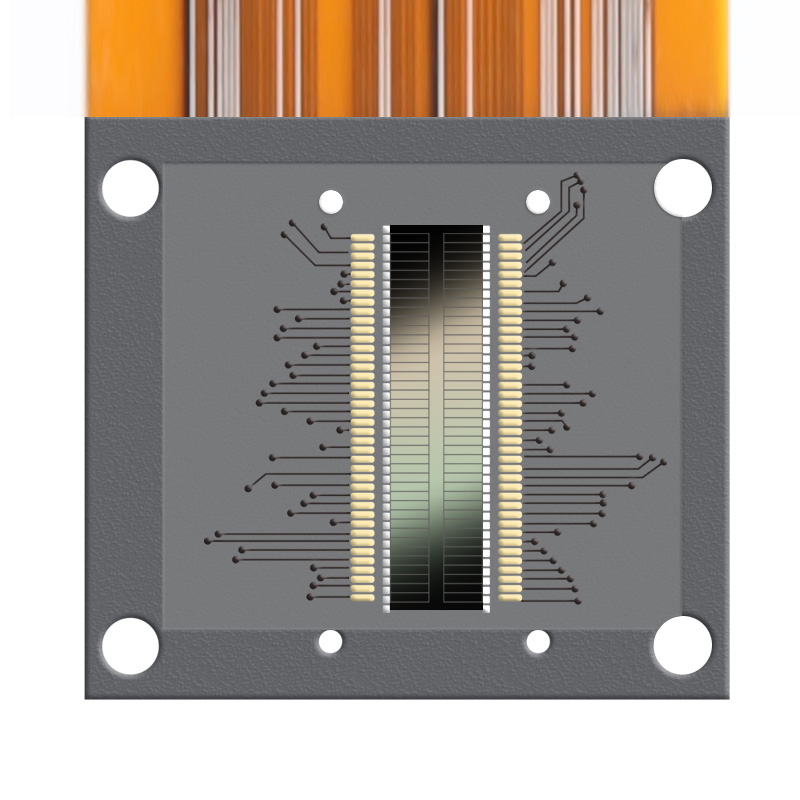

1. Silicon photodiode array (double 32 array) sensor
The dual-32 array sensor with larger area has strong light but not saturate, higher sensitivity of low light and wider spectral response range, which ensures the measurement speed, accuracy, stability and consistency of the instrument.
Mastering the core technology and fully compatible with international standards.

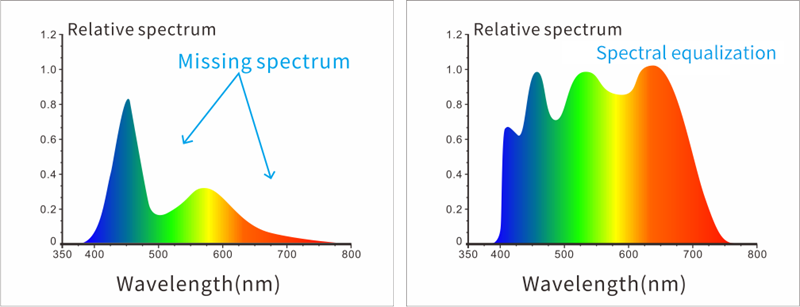

2. Adopt full-band balanced LED light source
The full-band balanced LED light source ensures sufficient spectral distribution in the visible light range, avoids the lack of spectrum of white LEDs in a specific band, and ensures the measurement speed of the instrument and the accuracy of the measurement results.
3. Grating Spectrophotometric technology
Using grating spectrophotometric technology, it has higher resolution and makes color measurement more accurate.

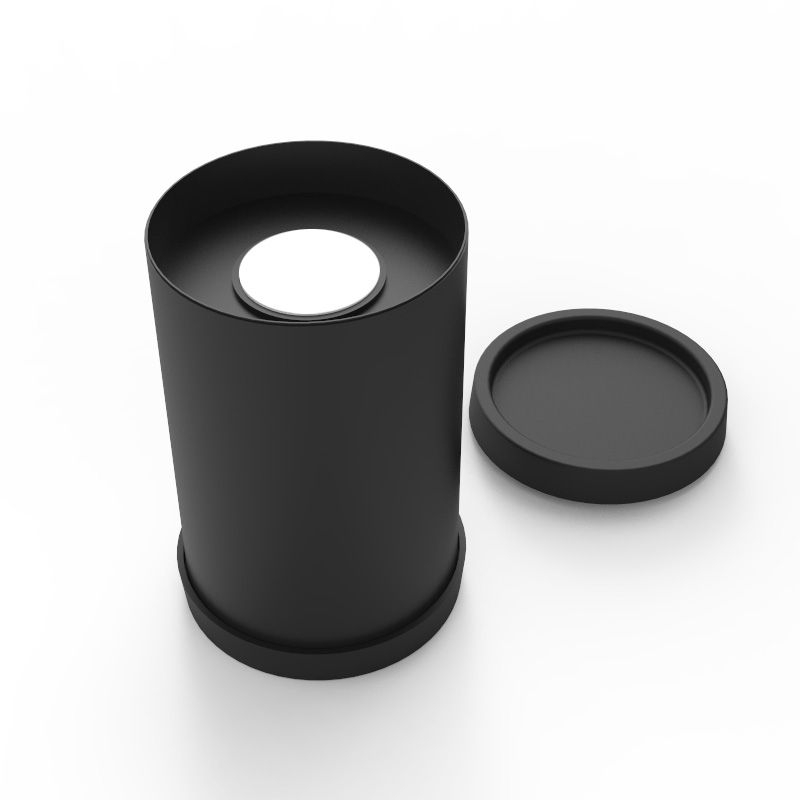

4. Place the base safely to ensure that the whiteboard is not dirty.
5. Professional whiteboard, a promise that will never change color forever.
6. Fast charging
Special fast charging method, low-voltage reminder to charge or use of off-hours to charge, to ensure the capacity and life of the battery (note: frequent repeated charging of the battery is more harmful).
7. Novel and fashionable appearance design based on ergonomics
The position of the hand grip and the measurement button are carefully designed to meet different gripping habits. The smooth and fine surface is derived from the art of high-precision appearance processing.

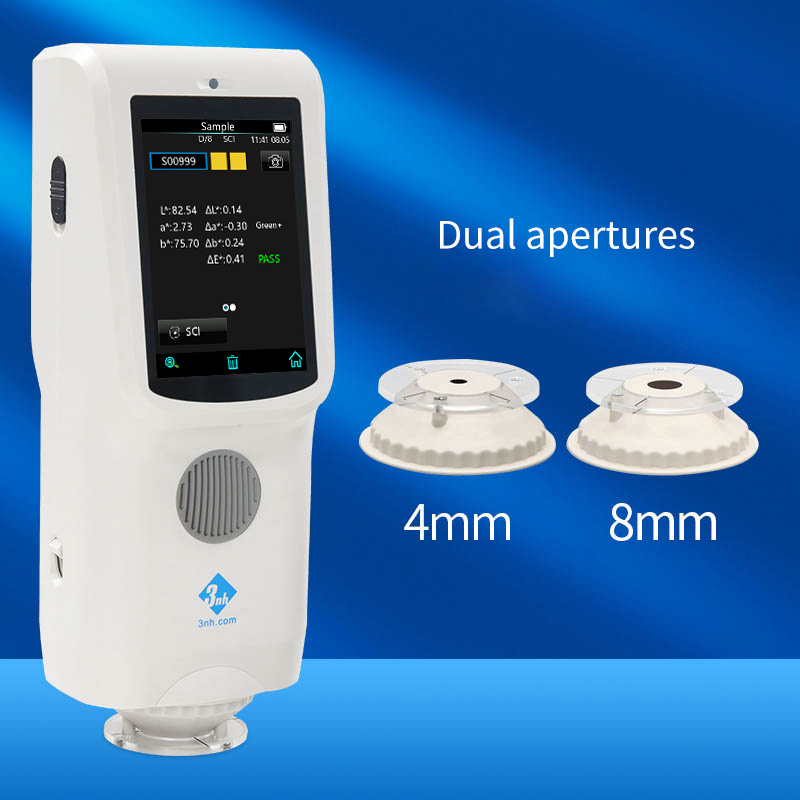

8. Equipped with 4/8mm dual measuring apertures to meet the measurement needs of different samples
Spectrocolorreader CR9 (Advanced) is equipped with Ø8mm and Ø4mm platform measuring apertures, which can meet the measurement needs of most special samples.

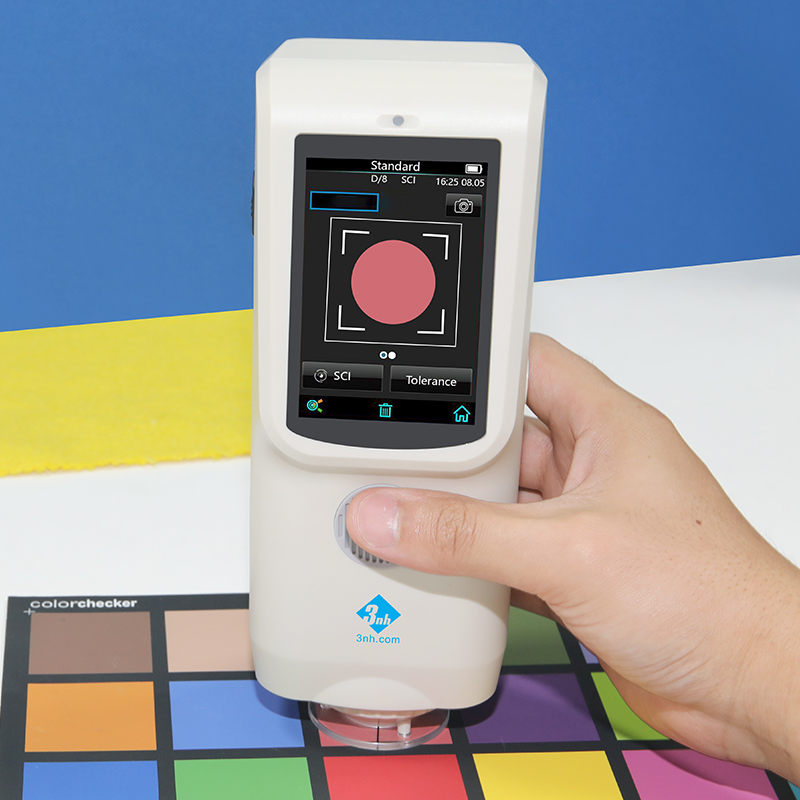

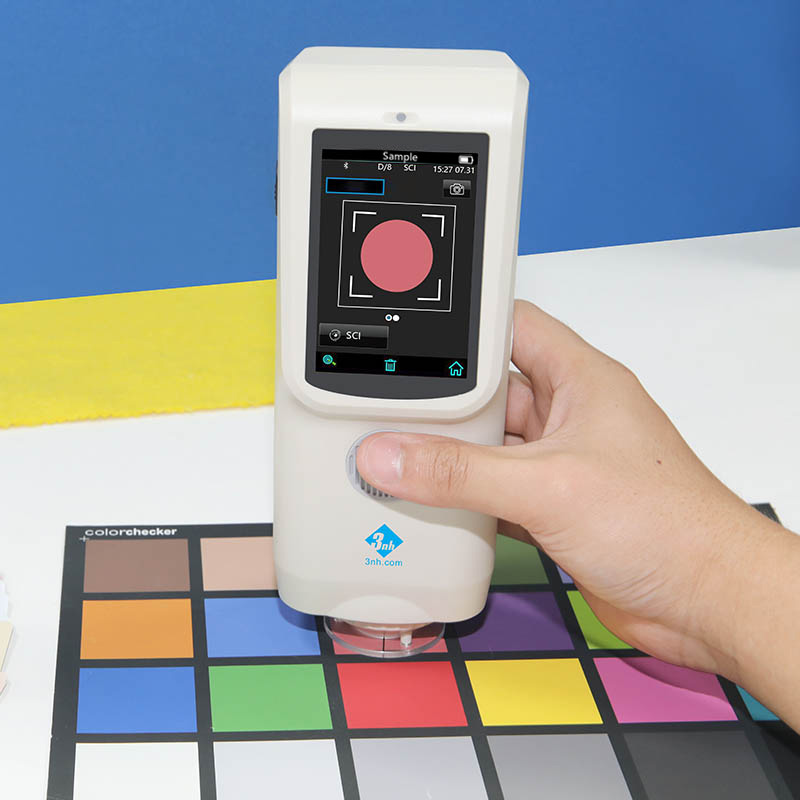

9. Camera locating, can clearly observe the measured area
Spectrocolorreader CR9 (Advanced) has a built-in camera for framing and positioning. Through the real-time framing of the camera, it can accurately determine whether the measured part of the object is the center of the target, which improves the measurement efficiency and accuracy.

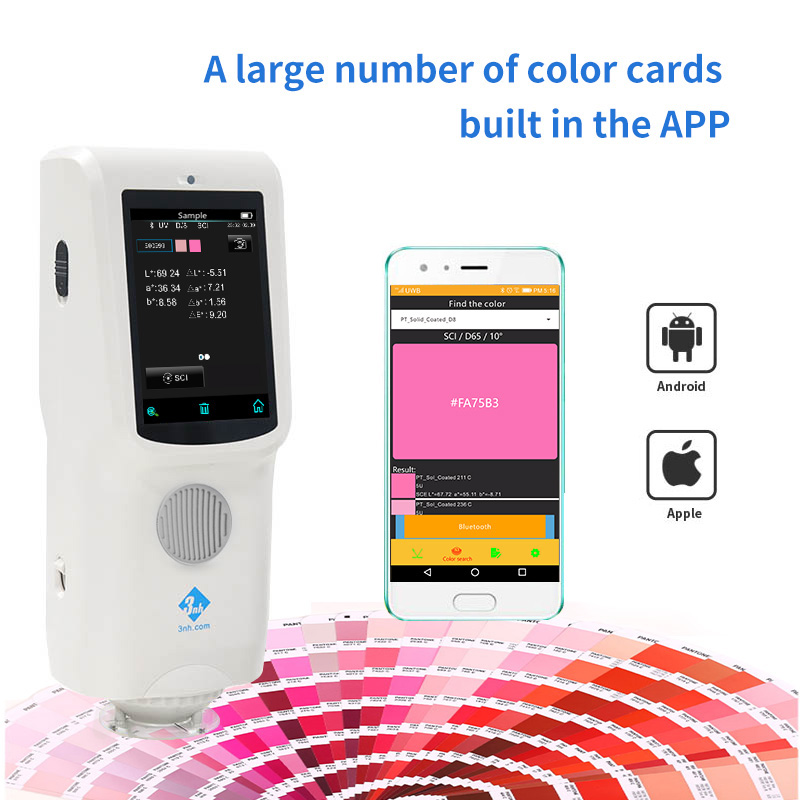

10. Massive color card database
The instrument stores 1000 standard and 30,000 samples, and the APP synchronously stores a large amount of data, which can quickly check color data, analyze and compare.

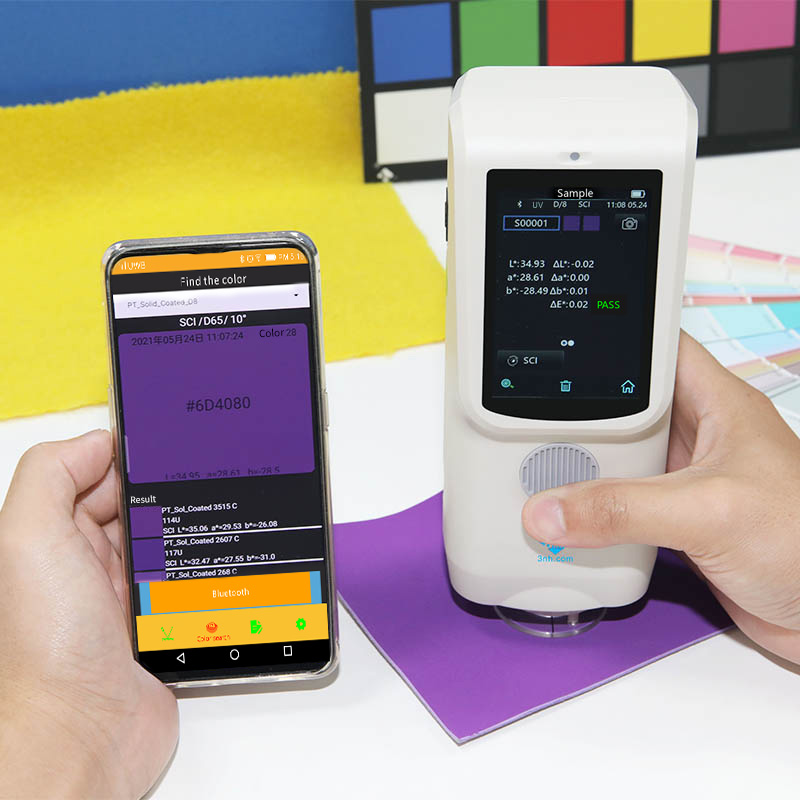

Use the App to build your private color database in the cloud. You don't need to carry a heavy color card. You can use CR9 colorreader to find the closest color in multiple color cards anytime and anywhere.

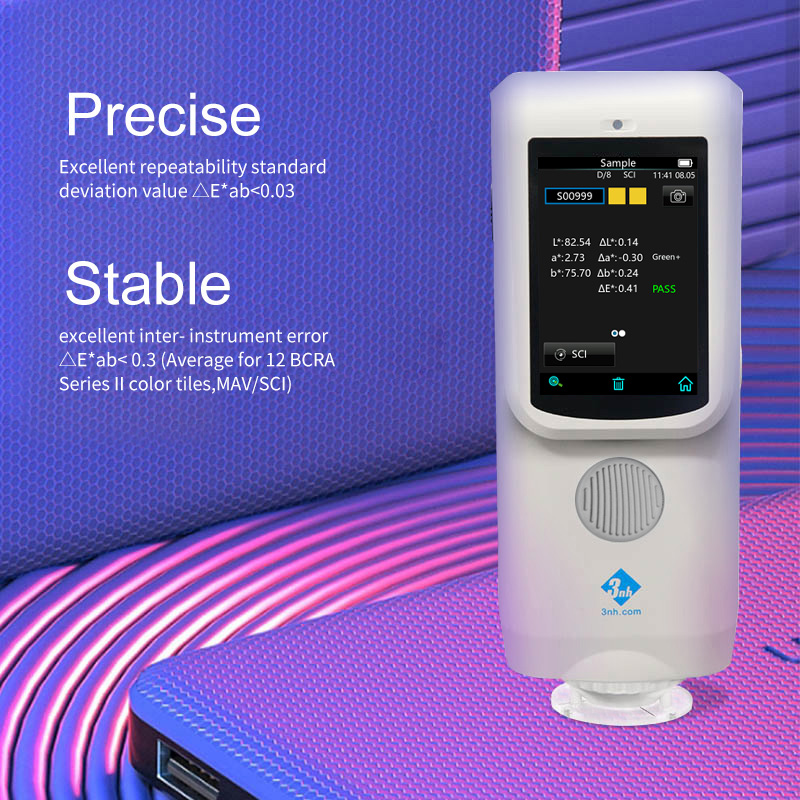

11. Excellent inter- instrument error and repeatability to ensure the consistency of measurement data of multiple equipment.

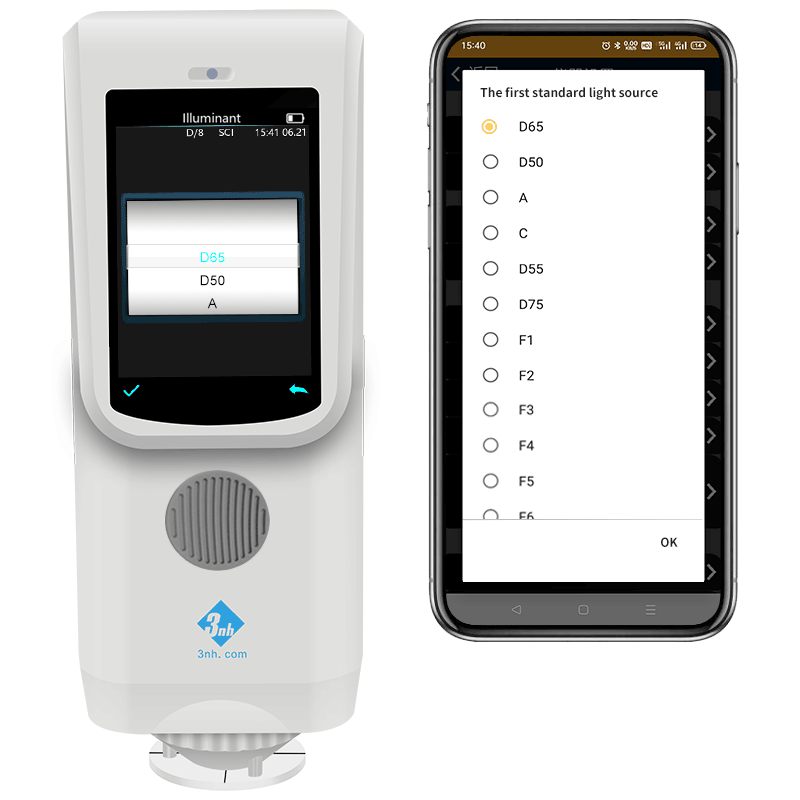

12. Multiple color spaces, multiple observation light sources
Provide CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,DIN Lab9,DIN Lab99 Munsell(C/2)
color space, and D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30) a variety of observation light sources, can meet the special measurement requirements under different measurement conditions.

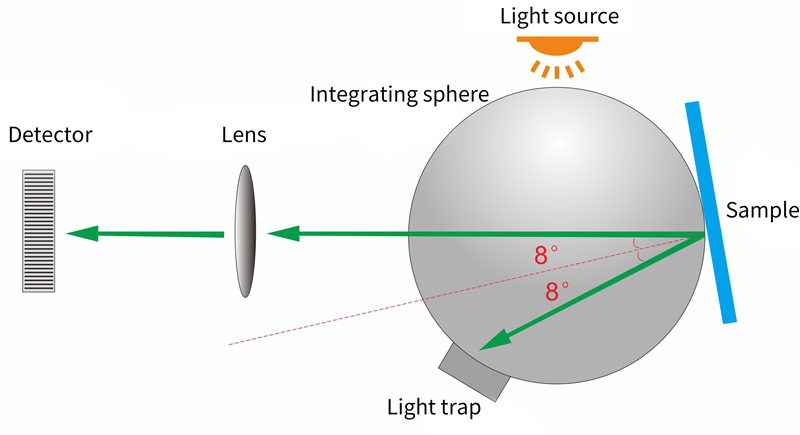

13.Adopt the internationally used D/8 SCI/SCE synthesis technology
The D/8 (SCI/SCE) measurement structure is adopted to reflect the color itself more objectively, and reduce the influence of the surface texture of the object on the test results. It conforms to the standardCIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7.
14. Diversified data display

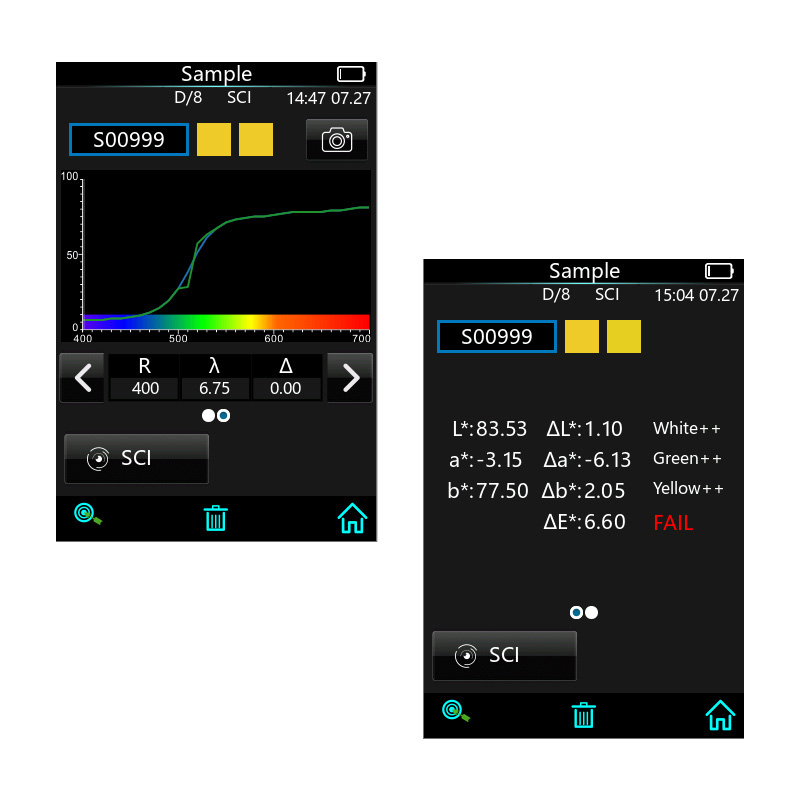

SpectrocolorreaderCR9 (Advanced)can intuitively display reflectance graph/value , sample chromaticity value, color difference value/graph, pass/fail result, color simulation, color offset and other data .It is convenient to view and also greatly improves the user's work efficiency.
15. Use whatever you want

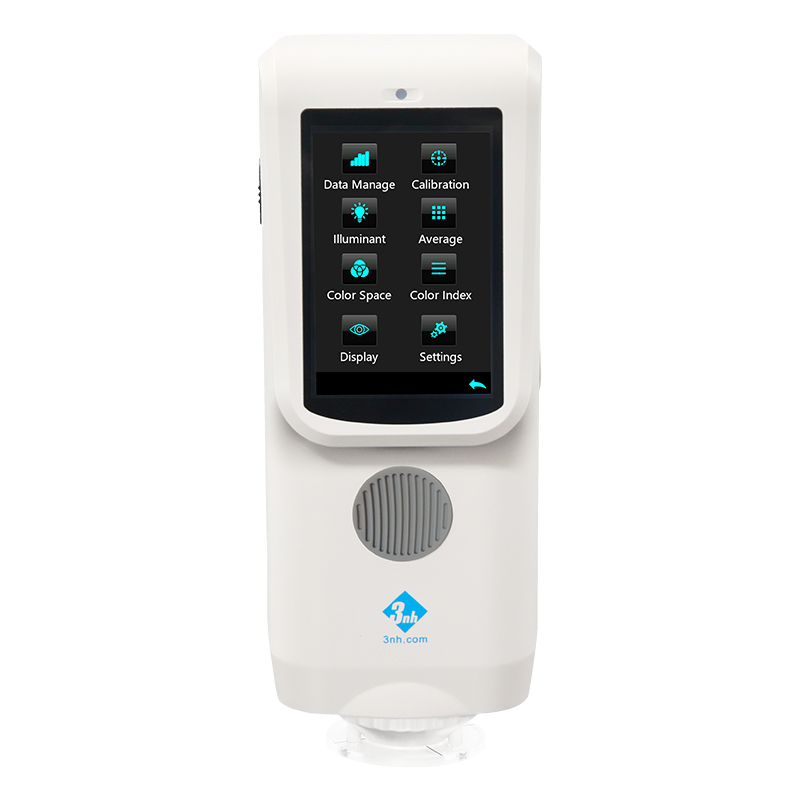

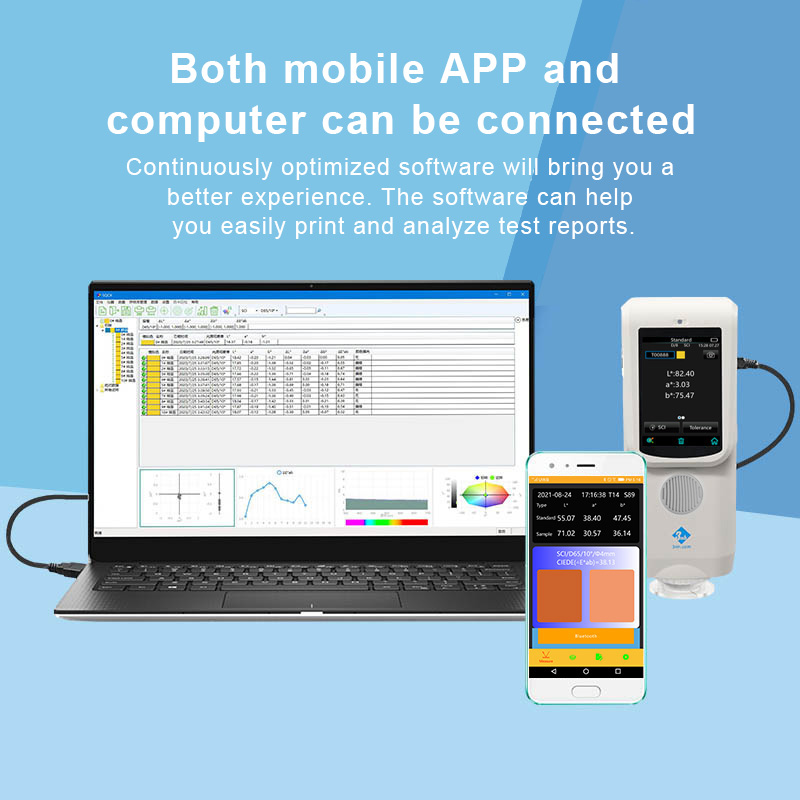

It can be used alone, 3.5inch true color screen can check data at any time, cooperate with SQCX quality management software to facilitate quality monitoring and color data management, with APP to synchronize data at any time, and more application scenarios are waiting for you to discover.
|Optical geometry||D/8 (diffuse illumination, 8° direction reception)|
|Comply with standard CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7|
|Characteristics||Dual measurement aperture, wider adaptability; used for accurate color measurement and quality control in plastic and electronic, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries|
|Integrating sphere size||Φ40mm|
|Light source||Combined full-spectrum LED light source, UV light source|
|Spectroscopic method||Planar grating|
|Sensor||Silicon photodiode arrays (dual row 32 groups)|
|Measurement aperture||Dual apertures：Φ8mm、Φ4mm|
|Focusing method||Optical Focus|
|Color space||CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,DIN Lab9,DIN Lab99 Munsell(C/2)|
|Color difference formula||ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99|
|Other colorimetric indexs||WI(ASTM E313, CIE/ISO,AATCC,Hunter).|
|YI(ASTM D1925, ASTM 313),|
|Metamerism index Mt|
|staining fastness,color fastness,strength, opacity,color card search|
|Displayed data||Spectrogram/data, chromaticity value, color difference value/graph, pass/fail result, color simulation, color offset|
|Measurement time||Approx. 1.5s (Measure SCI & SCE about 3.2s)|
|Repeatability||Chromaticity value: MAV/SCI, ΔE*ab within 0.03 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)|
|Inter-instrument error||MAV/SCI, within ΔE*ab 0.3 (Average for 12 BCRA Series II color tiles)|
|Measurement method||Single measurement, average measurement (2~99 times)|
|Locating method||Camera locating,stabilizer locating|
|Battery power||Lithium battery, 6000 times in 8 hours|
|Illuminant life span||5 years, more than 3 million times measurements|
|Display||TFT true color 3.5inch, capacitive touch screen|
|Data port||USB, Bluetooth® 5.0|
|Data storage||1000 standard samples, 30,000 samples (a piece of data can include SCI/SCE at the same time), APP mass storage|
|Language||Simplified Chinese, English, Traditional Chinese|
|Operating temperature range||0~40℃, 0~85%RH (no condensation), altitude< 2000m|
|Storage temperature range||-20~50℃, 0~85%RH (no condensation)|
|Standard Accessories||Power adapter, data cable, manual, SQCX quality management software (official website download), black and white calibration box, protective cover, wrist strap, dual aperture: Ø8mm + Ø4mm platform aperture, MOBCCS APP (official website download)|
|Optional Accessories||USB micro printer, powder test box, Bluetooth micro printer,holder base|
|Notes.||Technical parameters are for reference only, subject to the actual sales of products|
