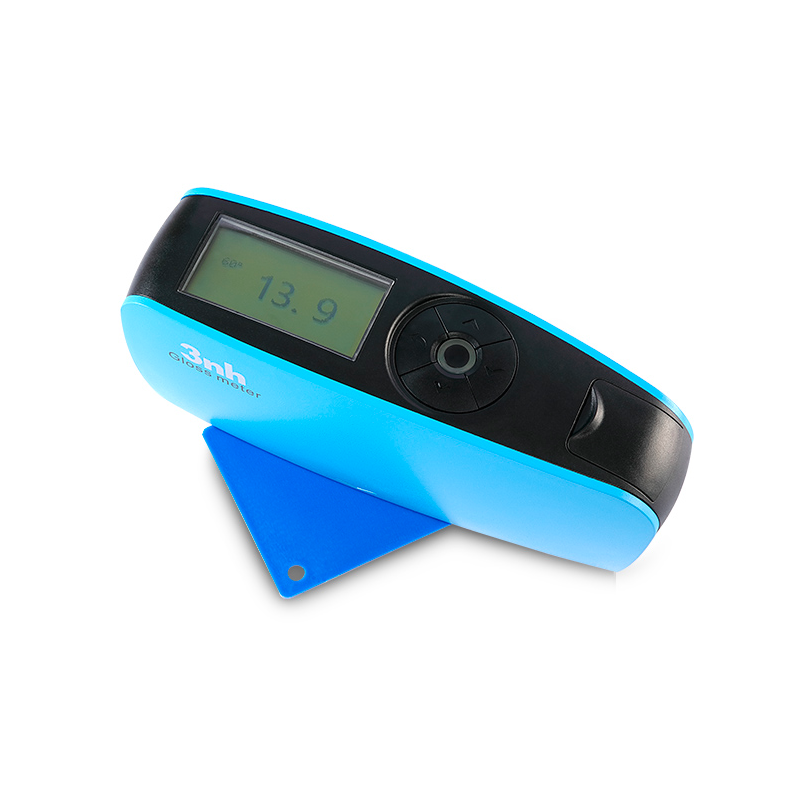

YG60 60°Accurate Gloss Meter
Details
YG60 60°Accurate Gloss Meter is independently developed by Shenzhen 3nh Technology Co., Ltd with independent intellectual property, manufactured according to international standard ISO2813 and China standard GB/T 9754. With auto-calibration and high-end QC software, it can meet the first grade requirements of JJG696.
YG series gloss meter also features with USB/RS-232 interface and Blutooth 2.1 dual mode.
1. Elegant Design combined with aesthetics and ergonomics;
2. With auto-calibration function;
3. Meet the first grade requirements of JJG696;
4. Large storage to save over 35000 data;
5. Auto Power-off within optional 30-120 seconds;
6. Comply to ISO2813, ASTM523, GB/T9754;
7. With PC software for quality report, more extend functions;
8. With multi working modes and multi-functions for most customers’ requirements.
Widely used in the filed of paints, coating, plastics, ink, rubber, printing, paper, glass, handware, ceramic, marble etc.
YG series gloss meter also features with USB/RS-232 interface and Blutooth 2.1 dual mode.
Features:
1. Elegant Design combined with aesthetics and ergonomics;
2. With auto-calibration function;
3. Meet the first grade requirements of JJG696;
4. Large storage to save over 35000 data;
5. Auto Power-off within optional 30-120 seconds;
6. Comply to ISO2813, ASTM523, GB/T9754;
7. With PC software for quality report, more extend functions;
8. With multi working modes and multi-functions for most customers’ requirements.
Application:
Widely used in the filed of paints, coating, plastics, ink, rubber, printing, paper, glass, handware, ceramic, marble etc.
Specifications:
Model | YG60 60°Accurate Gloss Meter |
Measuring Angle | 60° |
Measuring Area | 60°: 0-1000GU |
Division Value | 0.1GU |
Measuring Modes | Basic mode; Statistic mode; Continuous mode; QC mode |
Measuring Time | 0.5S |
Repeatability | 0~100GU : ±0.2GU; 100~2000GU : ±0.2%GU |
Accurate | Conform with JJG696 first grade requirements of gloss meter |
Auto Power-off Time | Within 30s-120s |
Long-time Calibration | Automatically check and made the calibration |
Language | Chinese & English |
Storage |
35000(Basic mode &Statistic mode : 1500; Continuous mode : 10000; QC mode: 10000) |
Display | 2.3 inch white and black screen |
Size | 160*52*84mm |
Weight | About 300g |

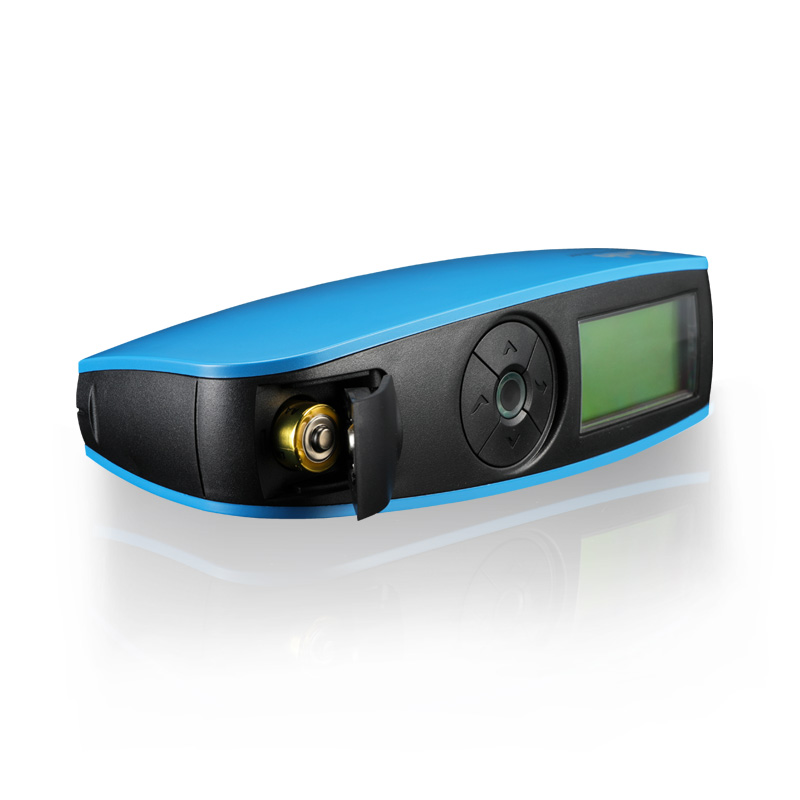

Power Supply | 1pc dry-cell battery(can measure 10000 times) or use USB Charge |
Interface | USB & Bluetooth 2.1 version |
PC Software | GQC6 QC software can printing testing report and with more extended functions |
Operation Temperature Range | 0-40℃(32-104° F) |
Storage Temperature Range | -20-50℃(-4-122° F) |
Humidity Range | < 85% RH, without condensation |
Standard Accessories | USB cable, user manual, calibration plate, QC software |
Optional Accessories | Miniature printer |
Notification: the technical parameter is only for reference |
