3nh specializes in high-precision color measurement instruments, including colorimeters, spectrophotometers, and haze meters, serving industries like textiles, plastics, and coatings. With innovative R&D and global reach, we deliver reliable solutions for color management and quality control, trusted by customers in over 80 countries.

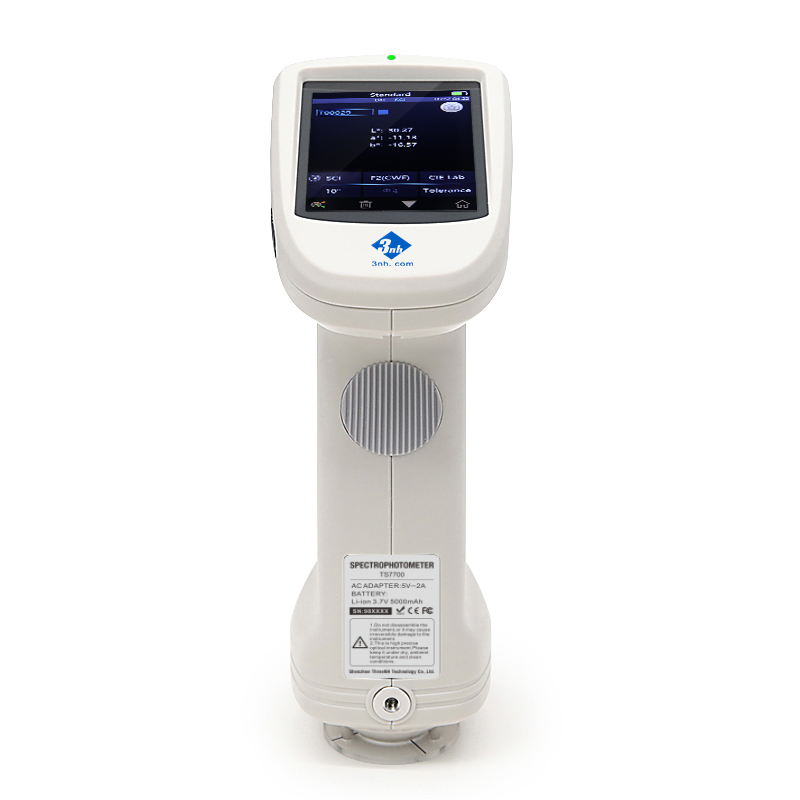

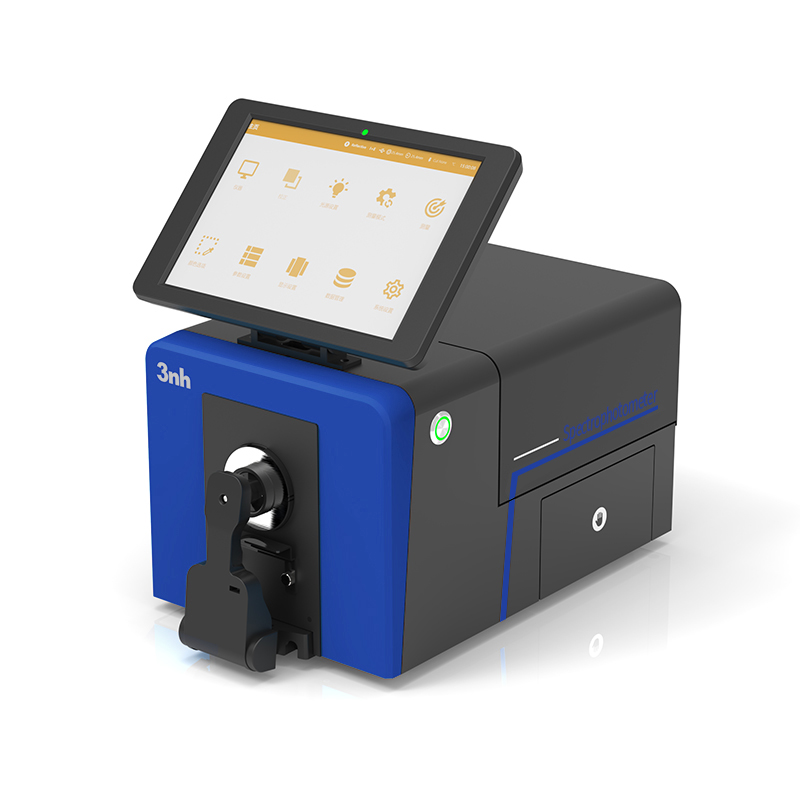

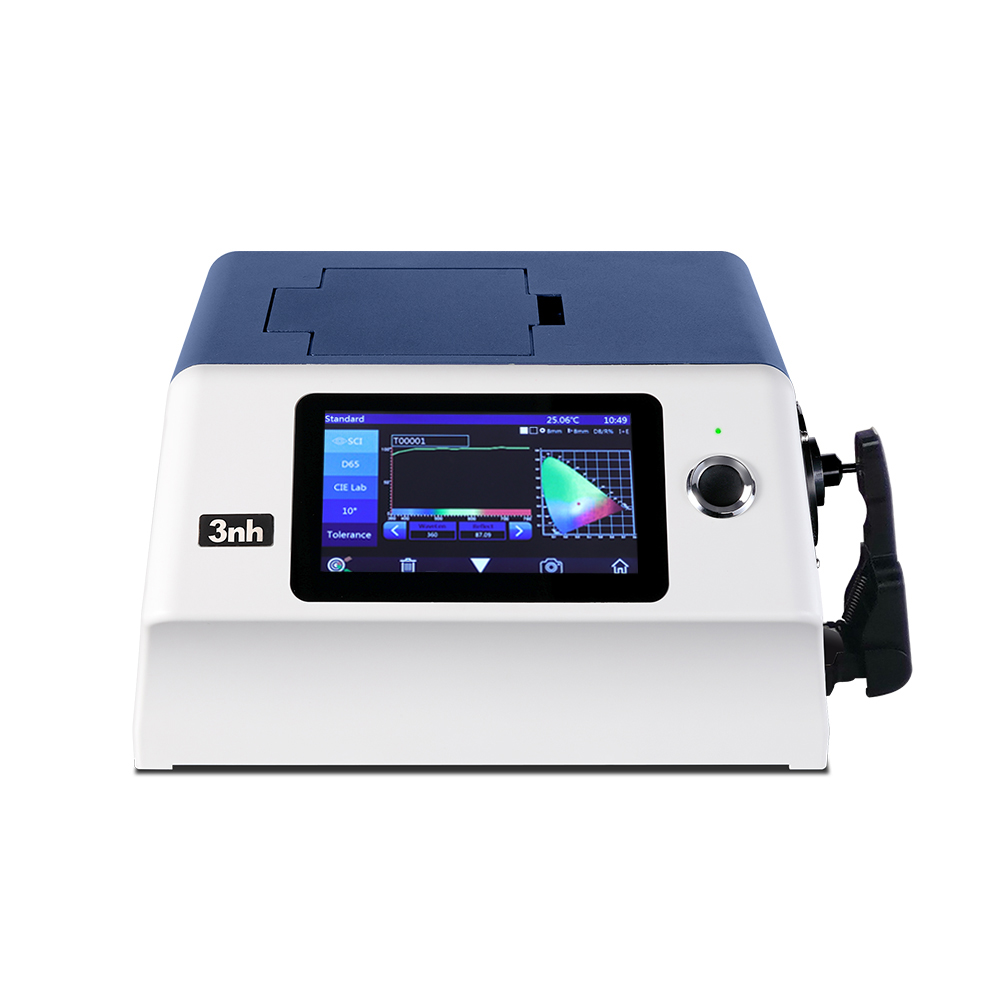

Spectrophotometer

3nh Spectrophotometer: Color Management Solutions

Universal Core Features & Benefits


Universal Core Features & Benefits

Feature: Equipped with a 400-700nm full-spectrum optical system, ΔE ≤ 0.001 color difference accuracy, and 0.1nm wavelength resolution.

Benefit: Captures ultra-subtle color variations (e.g., glaze differences in ceramics, dye batch deviations in textiles) that human eyes and standard colorimeters miss, ensuring absolute color consistency across production batches.


Multi-Scenario Measurement Modes

Feature: Supports reflection (for solids like fabrics/stone), transmission (for liquids like pharma injectables), and emission (for prints/labels) measurement; compatible with CIE LAB, CIE LCH, RGB, Pantone, and other global color standards.

Benefit: Eliminates the need for multiple devices—one 3nh spectrophotometer handles color management for diverse materials, reducing equipment costs and training time.



Smart Data & Compliance Management

Feature: 21 CFR Part 11/GMP-compliant data storage, encrypted audit trails, one-click PDF/Excel report export, and cloud-based data synchronization (ISO 27001 certified).

Benefit: Simplifies regulatory audits (e.g., EMA for pharma, ASTM for building materials) and enables traceable color records, avoiding compliance risks and manual documentation errors.


Durable & User-Friendly Design

Feature: IP67 dustproof/waterproof rating (portable models), -10℃ to 50℃ operating temperature range, and a 7-inch touchscreen with intuitive UI.

Benefit: Withstands harsh environments (e.g., construction sites, dyeing workshops) and requires minimal training—operators can master measurement in 10 minutes, reducing human error.


3nh Comprehensive Color Measurement Solutions

3nh comprehensive color measurement solutions integrate spectrophotometers, colorimeters, supporting software, and customized services to address color consistency challenges across industries. Unlike single-device solutions, it covers three core stages of color management:

Pre-production: Raw material color verification (e.g., textile cotton, pharma APIs,  stone).

In-production: Real-time color monitoring (e.g., dyeing lines, printing presses, pharma blending).

Post-production: Finished product color inspection & data archiving (for audits and batch tracing).

It supports 800+ material types and complies with 50+ global standards (CIE, ASTM, ISO, FDA 21 CFR Part 11), making it suitable for textile, pharma, building materials, packaging, and food industries.

Spectrophotometer Frequently Ask Questions

A colorimeter is sufficient for basic, routine color checks, while a spectrophotometer is needed for precise, comprehensive color analysis—here’s the clear breakdown:

When a Colorimeter is Sufficient

  1. Simple color matching needs: Ideal for checking if a sample matches a predefined standard (e.g., basic paint batches, plastic parts with solid colors).

  2. Consistent lighting conditions: Works well when measurements are done under fixed, standard light sources (no need to account for varied light effects).

  3. Cost-sensitive, high-volume tasks: Perfect for production lines requiring fast, low-cost color checks without advanced data analysis.

When to Use a Spectrophotometer

  1. Precise color quantification: Necessary for measuring Lab values (lightness, red-green, yellow-blue axes) or detecting subtle color deviations (critical for automotive coatings, high-end textiles).

  2. Complex color analysis: Required for metallic/pearlescent finishes, transparent materials, or samples with gloss/texture variations.

  3. Compliance and documentation: Essential when precise color data (spectral curves) is needed for quality audits, regulatory compliance, or brand color standardization.


The main instruments used to detect color are spectrophotometers and colorimeters (including photoelectric integrating colorimeters).

Spectrophotometer: High-precision option. It analyzes the full visible light spectrum to measure color accurately. Suitable for complex scenarios like textured surfaces, special effect colors, or batch consistency checks in industries such as paint and coatings.

Colorimeter (Photoelectric Integrating Colorimeter): Cost-effective and portable. It uses RGB filters to measure tristimulus values directly. Ideal for quick color difference detection in simple applications. Key Selection Tip Choose based on accuracy needs: use a spectrophotometer for high-precision color measurement, and a colorimeter for fast, basic color difference checks.


The machine used to measure color is primarily called a colorimeter or spectrophotometer.

Spectrophotometer: The most common and precise type. It analyzes light reflected/transmitted by an object across the visible spectrum to quantify color accurately. A spectrophotometer can measure colors on smooth or matte surfaces, as well as textured, glossy, mirror-like surfaces, and special effect colors. It measures the reflected light of a sample at a fixed angle (e.g., 45˚) or captures light reflected at all angles to calculate color measurements that closely match what the human eye perceives. Additionally, similar to how humans flip a sample to view colors from different angles, a spectrophotometer is suitable for measuring a variety of materials and surface characteristics. Widely used in industries like paint, textiles, plastics, Chemicals, Pharmaceuticals, and printing.

Colorimeter: Also called photoelectric integrating colorimeter, a simpler, more cost-effective option. It measures color based on three primary colors (RGB) and is suitable for basic color matching needs. A photoelectric integrating colorimeter is a color measurement device based on the photoelectric integration principle. It directly measures the tristimulus values XYZ of an object's color using three color filters (red, green, blue) and silicon photocells as three sensors. The color measurement principle of this instrument imitates the human eye's mechanism of perceiving the three primary colors (red, green, blue). It corrects the relative spectral sensitivity of the detector through color filters to match the CIE-recommended spectral tristimulus value functions x(λ), y(λ), and z(λ).

Spectrocolorimeter: Combines the functions of spectrophotometers and colorimeters, offering both spectral data and color space values for comprehensive analysis.

When detecting color differences, the first factors to consider when selecting a light source include its stability, directionality, lifespan, and the effectiveness of the ultimately obtained spectral curve. The illuminant of a colorimeter is a fixed bulb, such as a tungsten lamp,LED light or a long-life xenon lamp. However, for the same color sample, the results displayed by the instrument vary under different light sources. This is because different light sources cause different absorption and reflection of light on the sample, leading to differences in how both the human eye and the instrument perceive the color.

In general, the D65 light source is used in the application of coil steel inks for construction. The D65 light source is equivalent to average daylight. Most coil steel inks for construction are used outdoors, and sunlight is regarded as the standard light source in outdoor environments. For household appliance coil steel inks, due to their usage characteristics, they are mostly used indoors. Therefore, the A standard light source is adopted for color measurement of samples based on indoor lighting conditions. The A light source is a carefully specified tungsten light source. Other light sources, such as fluorescent light sources, can be used in many types of applications. For example, some textile factories use fluorescent light sources. Therefore, a reasonable light source should be selected as the mutually recognized measurement method based on actual usage conditions and user requirements. Once agreed upon by both parties, color measurement must be conducted under the same conditions. This helps reduce unnecessary systematic errors and human errors, achieving the optimal consistency in color measurement.

The 3nh high-precision spectrophotometric colorimeter adopts a combined LED light source with long lifespan and low power consumption, which includes UV (ultraviolet) and UV-excluded options. This design can meet the color difference detection needs of different users and supports the selection of multiple light source modes.

True color in chemistry is the color seen in a solution or compound in standardized conditions. It depends on electronic transitions in molecules, specifically absorption of a particular wavelength of light, and this depends on the structure of the compound.

Colorimetry is a method that applies color intensity to ascertain the chemical concentrations. It is founded on Beer-Lambert Law, whereby the absorbance at a given wavelength is proportional to the concentration. It is popular in environmental and biochemical testing.

A spectrophotometer and colorimeter are certain instruments used by scientists to measure color by quantifying reflected or transmitted light. The results are presented in color spaces, such as L*a*b*, RGB, or XYZ. This enables the accuracy of comparison and tracking of the changes in color in chemical or material research.

Colorimeters or spectrophotometers are used to measure liquid color. They measure light coming through or reflecting off the liquid. Readings can be reported as Lab*, RGB, or absorbance units. So that objective color analysis can be used to control quality, or to measure chemical concentration.

A colorimeter or spectrophotometer should be used to measure the color of a solution. The instrument directs light through the liquid and quantifies absorbance at certain wavelengths. The values obtained indicate the color intensity of the solution and, by default, the concentration of the solution.

The color of chemical products is measured by using a colorimeter or spectrophotometer. The instruments measure the amount of light that gets absorbed or reflected by a substance. It may be used to determine concentration, purity, or compliance with product standards.
