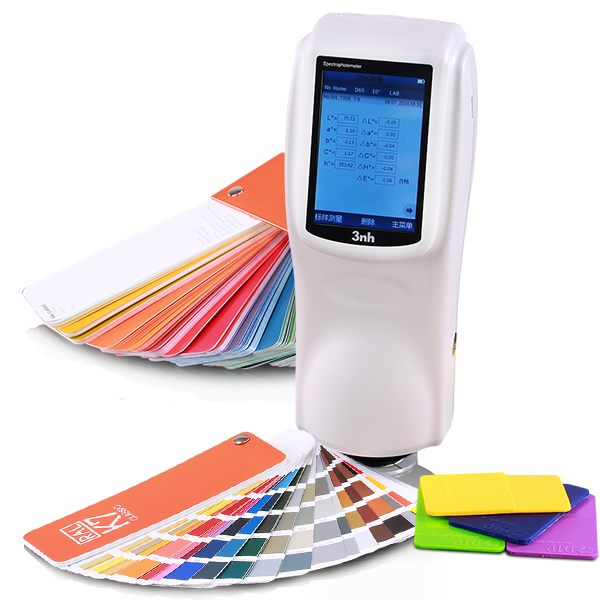

NS800 spectrophotometer uses the principle of combination LED precision spectroscopy, separates the light according to a certain wavelength interval, and adopts groups of sensor array to perform sensitive analysis. NS800 spectrophotometer with higher accuracy is very sensitive to any colors. It not only can measure L*ab value and delta E value accurately, but also can display spectral reflectance curve which can realize color matching function and calculate the real parameters of various color formulas.
In the R&D process, 3nh scientists and engineers measured various color samples from dark to light, white to black, and other standard color boards provided by ISO (International Standardization Organization). The parameters of test results are integrating with international standards.
3nh also analyzed the parameters from Japan, American and Germany spectrophotometers. The differences of L*ab absolute value between them are within ±1.5. Compared the L*ab value between NS800 and Japan spectrophotometer, when measuring any color objects, the biggest L*ab difference is within ±1.0. This is a breakthrough of 3nh high technology which realizes to be fully compatible with international market.

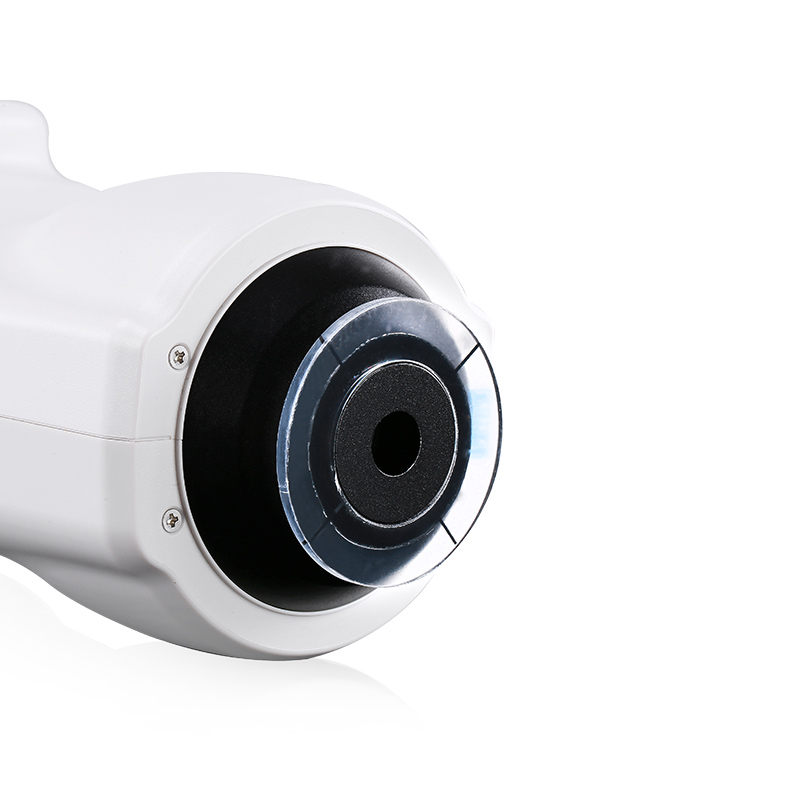

|Illumination/observation system||45/0 method (45 ring-shaped illumination, vertical viewing), Comply with CIE No.15，GB/T 3978|
|Integrating sphere Size||Φ58mm|
|Light Source||combined LED sources|
|Sensor||Silicon photodiode array|
|Color Space||CIE LAB,XYZ,Yxy,LCh,CIE LUV|
|Color difference Formula||ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00|
|Other Chromaticity Data||WI(ASTM E313，CIE/ISO, AATCC, Hunter), YI(ASTM D1925，ASTM 313), Metamerism Index (Mt), Color Stain, Color Fastness|
|Display Data||Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation|
|Repeatability||Spectral Reflectance: standard deviation within 0.1%(400~700nm: within 0.2%)|
|Colorimetric Value||Standard deviation within Delta E*ab 0.04 (Measurement conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.)|
|Inter Instrument Agreement||Within Delta E*ab 0.2 (Average for 12 BCRA Series II color tiles)|
|Battery||Li-ion battery. 5000 times within 8 hours|
|Lamp Life||5 years, more than 1.6 million measurements|

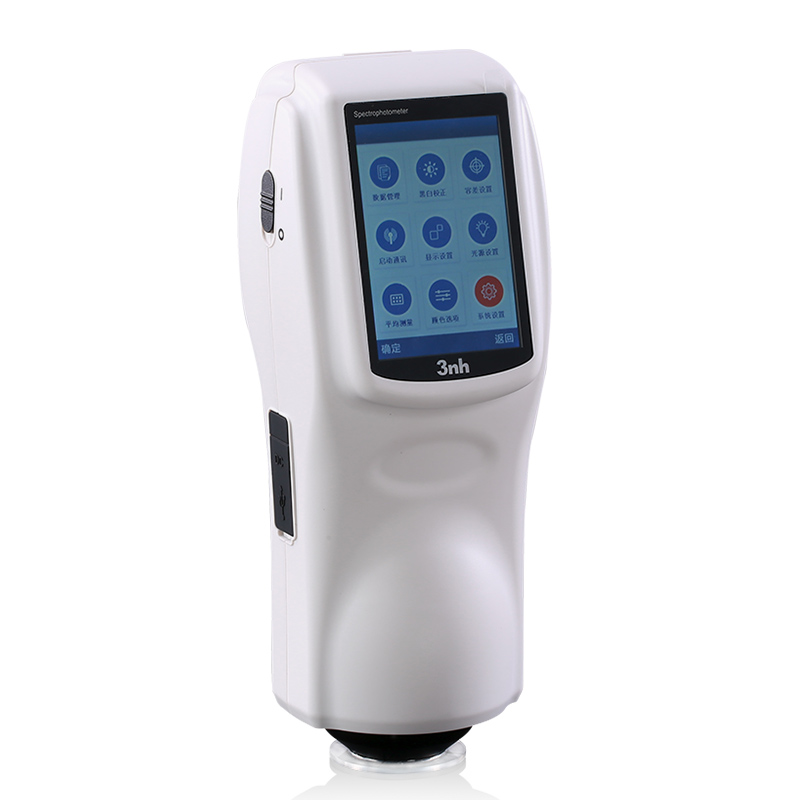

|Display Screen||TFT 3.5inch, Capacitive Touch Screen|
|Data Memory||1000 Standards, 15000 Samples|

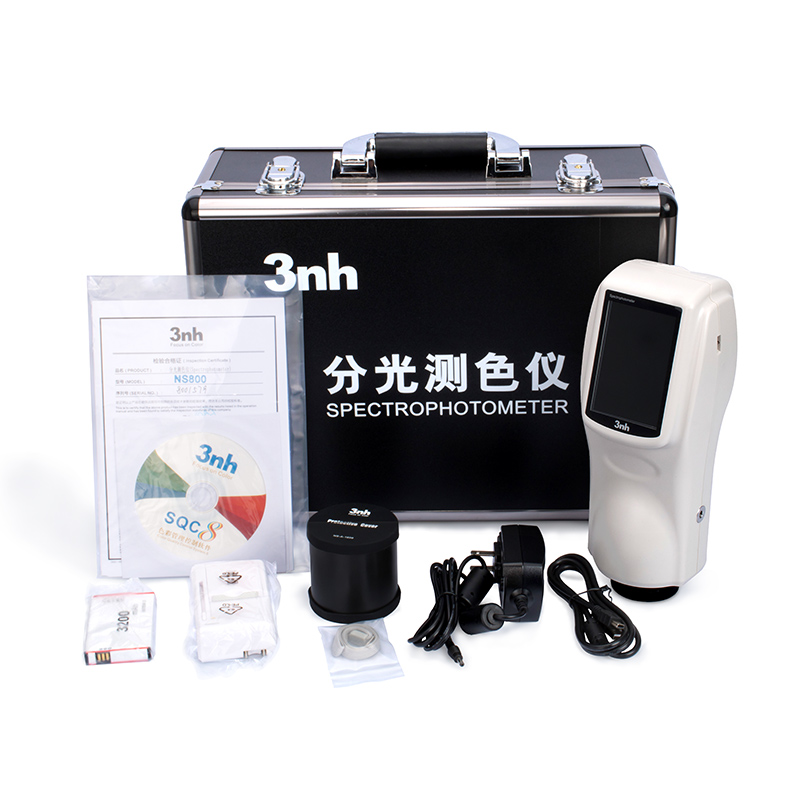

|Standard Accessory||Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM (containing management software), Data Line, White and Black Calibration Cavity, Protective Cover and Wrist Strap|
|Optional Accessory||Micro Printer, Universal Test Compon|
Provide complete spectrum reflectance curve, Input L, a, b value manually
|Notes||The specifications are subject to change without notice|
